API “The BOX” Operator’s Manual

3.4 Auxiliary Sends

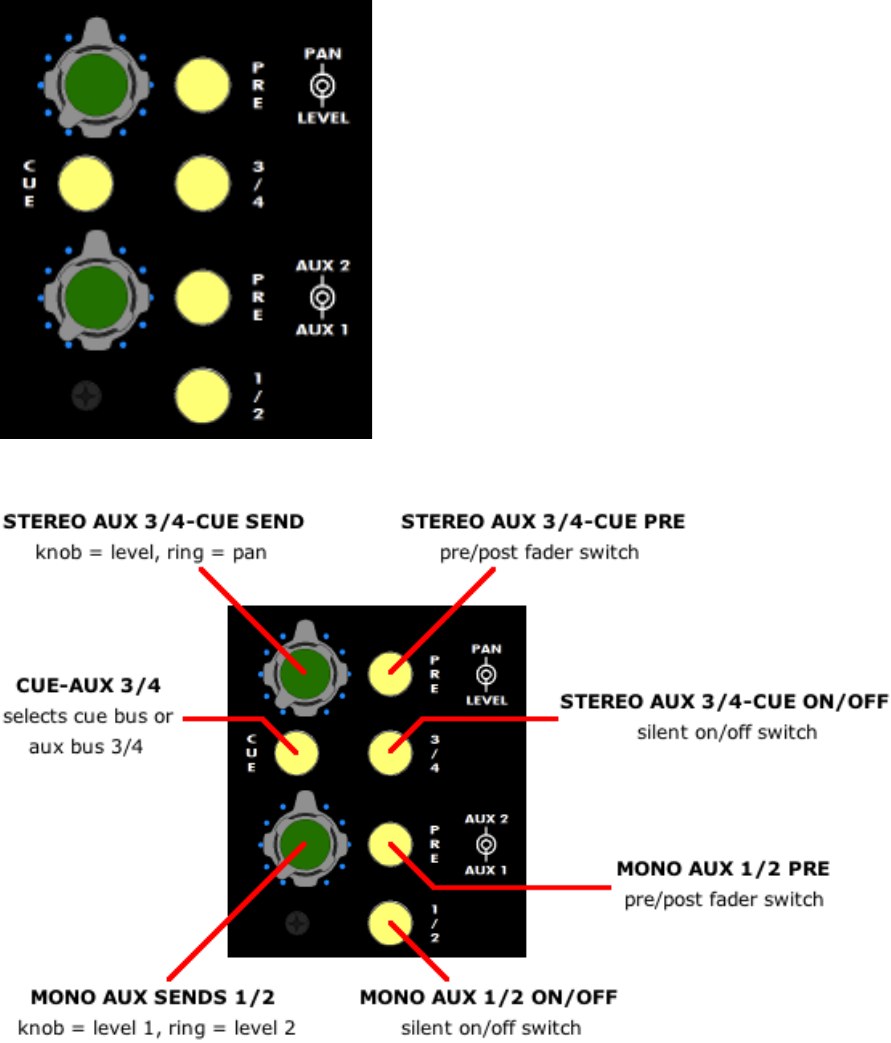

Auxiliary/Cue Controls

3.4.1 Mono Aux Sends 1/2

AUX 1 and AUX 2 are mono auxiliary sends that feed aux buses 1 and 2. These sends

are commonly used as effects sends, but can be used for additional headphone feed or

other purposes.

A common on/off switch is used to silently engage both mono sends. The post-fader

signal feeds AUX 1/2 by default, but the pair can be switched to the pre-fader signal.

“The BOX” is equipped with four (4) auxiliary

sends fed by two (2) mono auxiliary sends

(1/2), and one (1) stereo auxiliary/cue send

(3/4).

Each pair of sends has pre/post-fader

routing and an on/off switch. The stereo aux

send (3/4) can be routed to feed the stereo

cue bus instead of aux buses 3 & 4.

To support these sends, “The BOX” is

equipped with four auxiliary buses, a stereo

cue bus, and corresponding masters with

balanced outputs.
