API “The BOX” Operator’s Manual

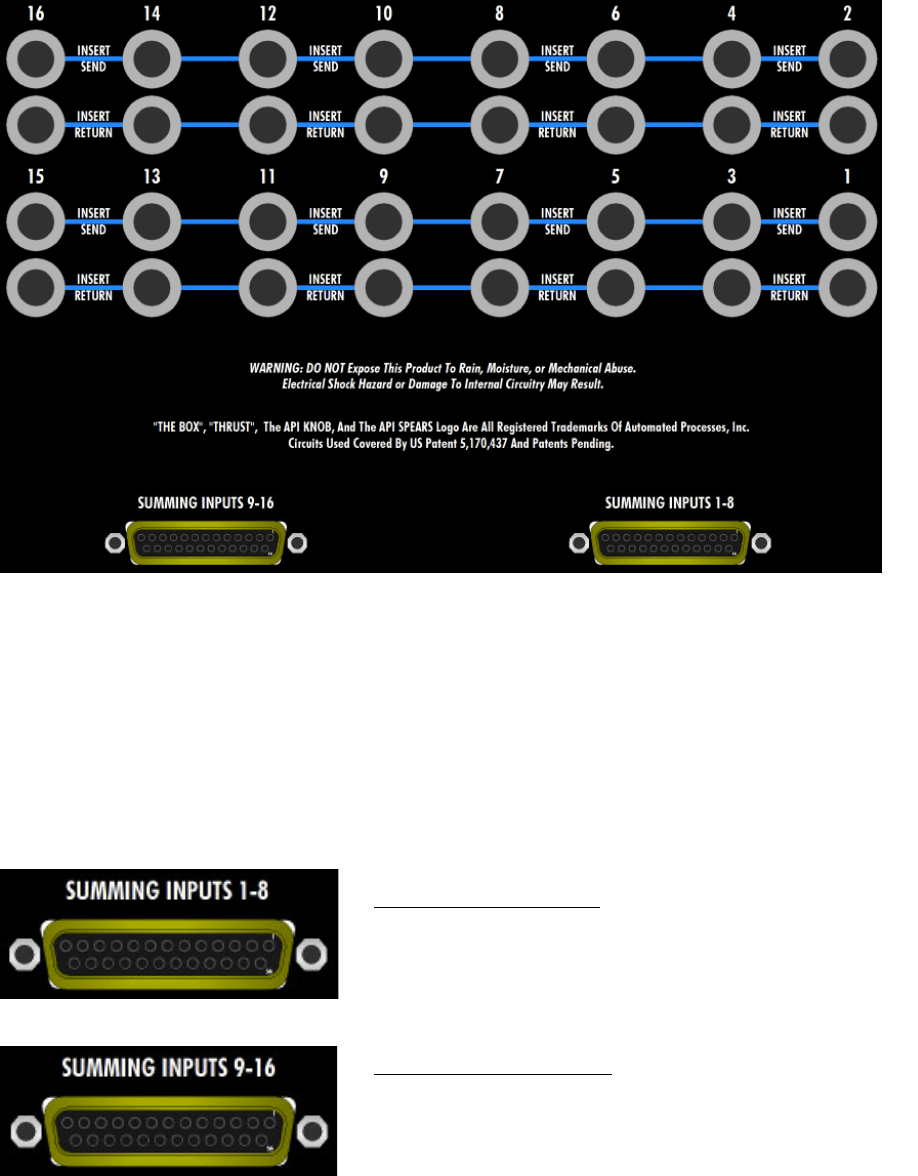

3.5 Summing Input Rear Panel Connections

The rear panel provides a comprehensive and flexible set of summing input

connections. Connections include:

• Line inputs

• Insert sends and returns

3.5.1 Summing Input Line Input Connections

The line inputs for the sixteen summing inputs are distributed across two DB-25

connectors.

SUMMING INPUTS 1-8: DB-25, balanced, low-

impedance, line-level

• Standard pin-out: 1-8=summing inputs 1-8

SUMMING INPUTS 9-16: DB-25, balanced, low-

impedance, line-level

• Standard pin-out: 1-8=summing inputs 9-16
