API “The BOX” Operator’s Manual

5.5 Program Bus Outputs

“The BOX” is equipped with stereo, balanced, low-impedance line-level program

outputs terminated with XLR connectors.

5.6 Program Bus Rear Panel Connections

PROGRAM BUS OUTPUT (LEFT & RIGHT): 3-pin male

XLR, balanced, low-impedance, line-level

• Located post-master fader

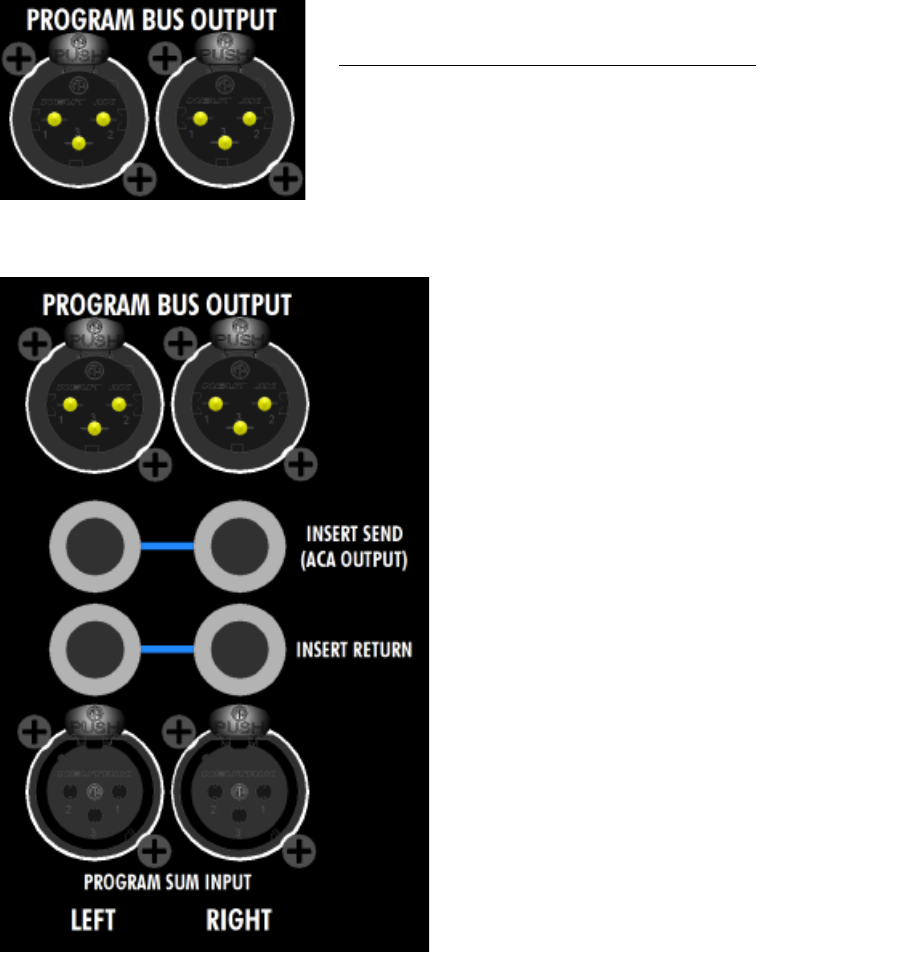

The rear panel provides a comprehensive

and flexible set of stereo program master

connections. LEFT and RIGHT program

bus connections include:

• Program bus outputs

• Insert sends

• Insert returns

• Program sum input
